Stainless Steel Elbow

Standards:

ANSI – B 16.9
ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
API 590-605
ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”
ASME B16.25 – ‘Buttwelding Ends’
ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’
MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’

Schedule:

Sch 5 TO Sch XXS.

Sizes:

Diameters – from 21,3 to 711 mm.
Wall Thickness – from 2 to 40 mm.

Materials:

Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Type:

Butt Weld (BW)

Thickness:

Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Dimension:

ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

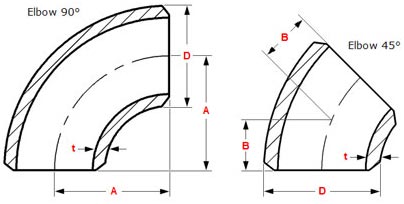

NPS

O.D.
D

90 degrees
Long Radius
Center-to-End
A

45 degrees
Long Radius
Center-to-End
B

90 degrees
3D
Center-to-End
A

45 degrees
3D
Center-to-End
B

1/2

21.3

38

16

–

–

3/4

26.7

38

19

57

24

1

33.4

38

22

76

31

1¼

42.2

48

25

95

39

1½

48.3

57

29

114

47

2

60.3

76

35

152

63

2½

73

95

44

190

79

3

88.9

114

51

229

95

3½

101.6

133

57

267

111

NPS

O.D.
D

90 degrees
Long Radius
Center-to-End
A

45 degrees
Long Radius
Center-to-End
B

90 degrees
3D
Center-to-End
A

45 degrees
3D
Center-to-End
B

NPS

O.D.
D

90 degrees
Long Radius
Center-to-End
A

45 degrees
Long Radius
Center-to-End
B

90 degrees
3D
Center-to-End
A

45 degrees
3D
Center-to-End
B

4

114.3

152

64

305

127

5

141.3

190

79

381

157

6

168.3

229

95

457

189

8

219.1

305

127

610

252

10

273

381

159

762

316

12

323.8

457

190

914

378

14

355.6

533

222

1067

441

16

406.4

610

254

1219

505

18

457

686

286

1372

568

20

508

762

318

1524

632

22

559

838

343

1676

694

24

610

914

381

1829

757

26

660

991

406

1981

821

28

711

1067

438

2134

883

30

762

1143

470

2286

964

32

813

1219

502

2438

1010

34

864

1295

533

2591

1073

36

914

1372

565

2743

1135

38

965

1448

600

2896

1200

40

1016

1524

632

3048

1264

42

1067

1600

660

3200

1326

44

1118

1676

695

3353

1389

46

1168

1753

727

3505

1453

48

1219

1829

759

3658

1516

NPS

O.D.
D

90 degrees
Long Radius
Center-to-End
A

45 degrees
Long Radius
Center-to-End
B

90 degrees
3D
Center-to-End
A

45 degrees
3D
Center-to-End
B
